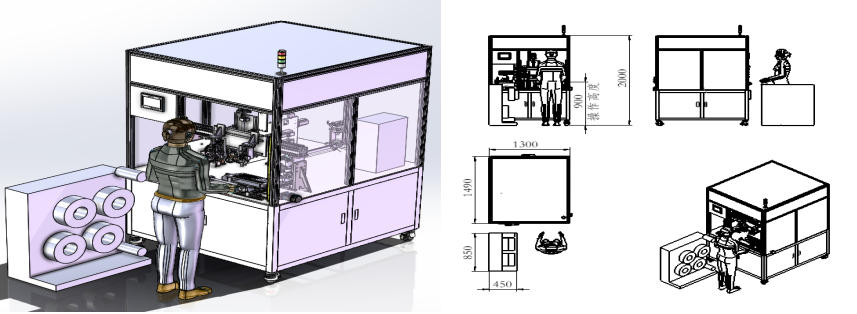

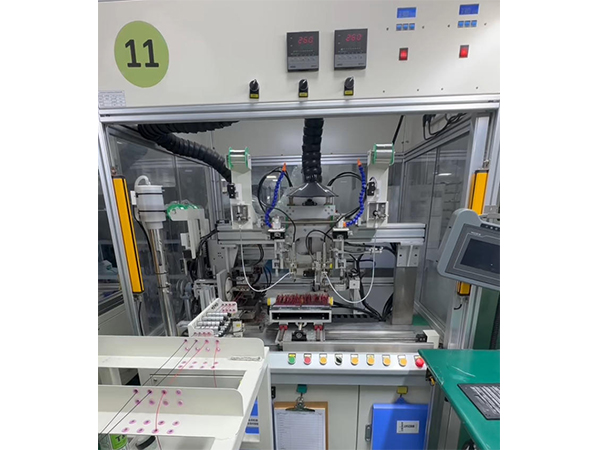

1. Equipment dimensions: 1500*1300*2000; Equipment weight: approximately 600kg;

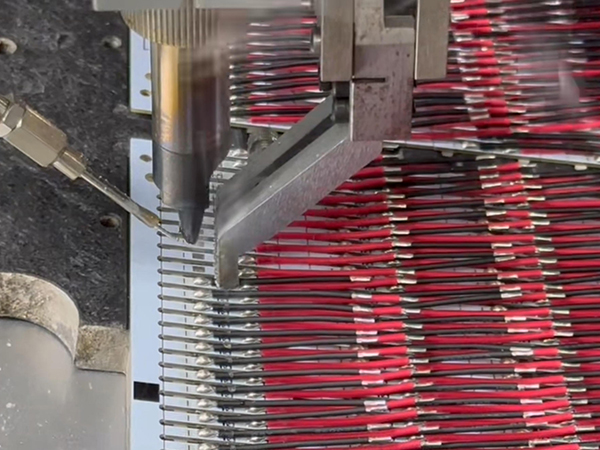

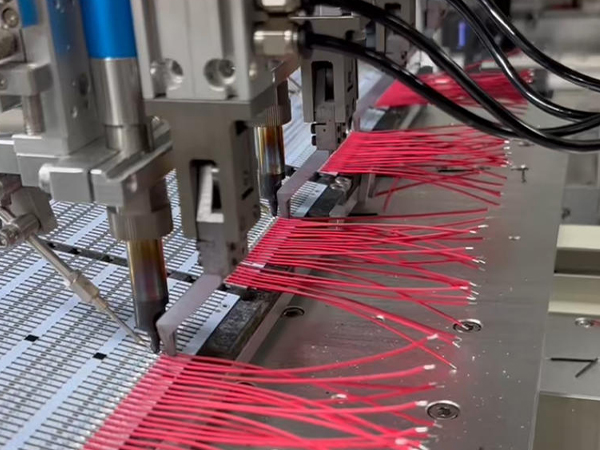

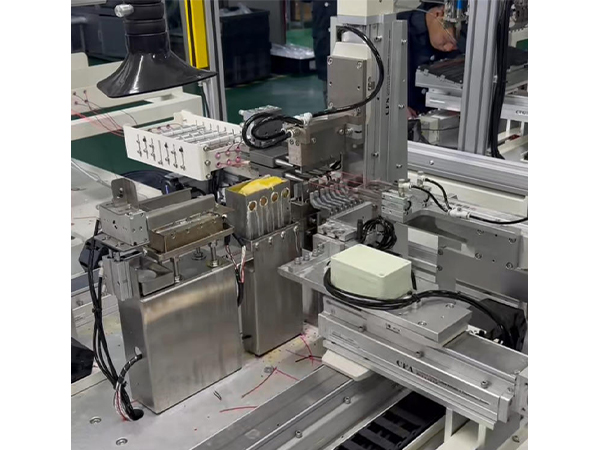

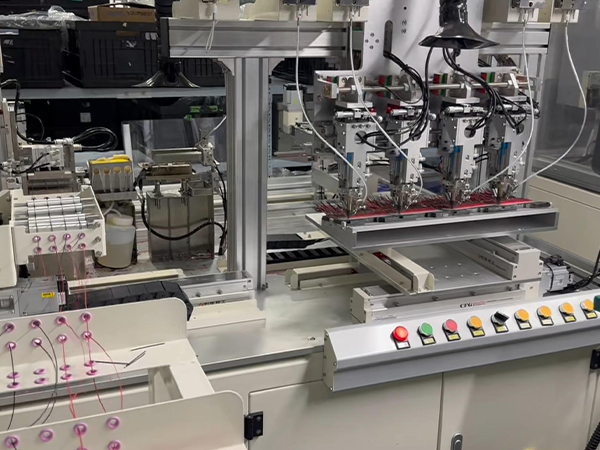

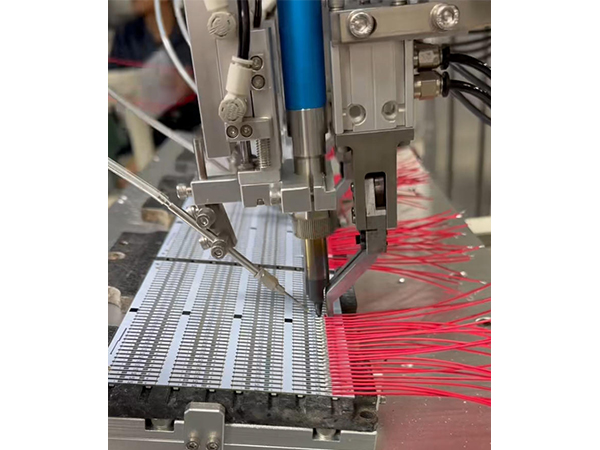

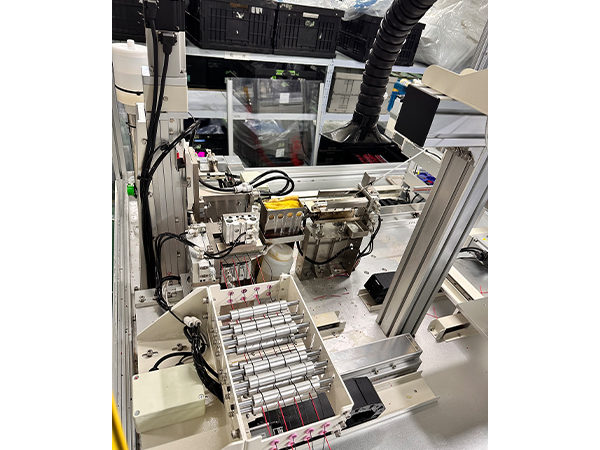

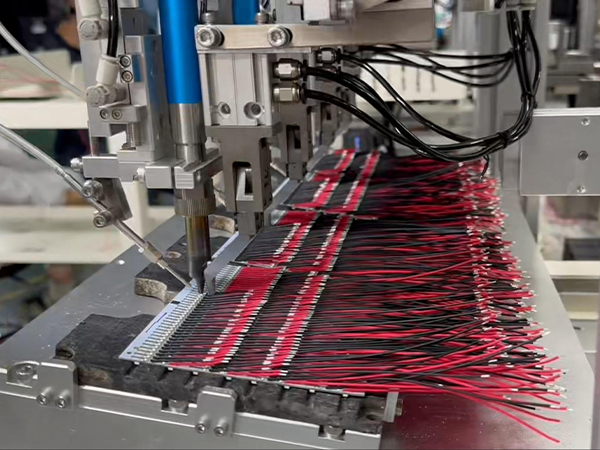

2. Equipment functions: Automatic wire feeding, cutting, stripping, cutting, dipping both ends of the wire bundle with tin, sending the wire to the welding position for welding;

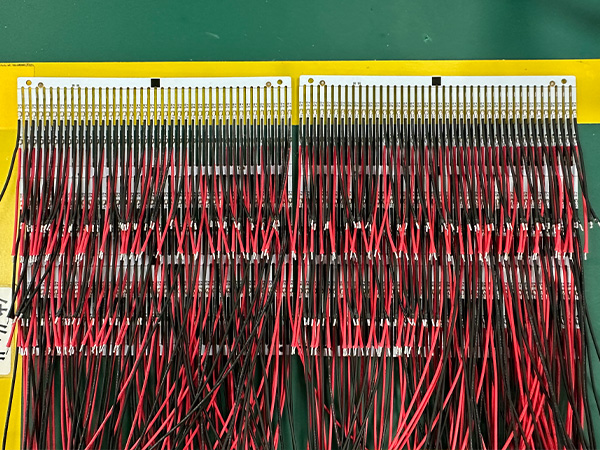

3. Basic requirements for the equipment: Various specifications of wire bundles (0.8mm - 2.0mm), wire cutting, stripping, dipping the head and tail ends with tin, welding the wire bundle to the circuit board or product, the entire process is automatically completed; Different products, different wire materials, select the corresponding program, and simply mark the points manually; The equipment is compatible with PCB board or product size range (150*150) (specifications can be customized): Wire cutting length range 25mm - 300mm (other lengths can be customized), wire cutting length accuracy ±1mm or 5‰; Stripping length 1 - 8mm, stripping accuracy ±1mm; Ironing temperature normal temperature - 450℃; Equipment is equipped with fault record, production statistics, and usage record of key wear parts;
4. Safety protection: Safety photoelectric sensor, warning labels are pasted at potential safety hazard areas, such as anti-collision, high voltage, etc.;
5. Operating process: Place the product, press the start button with both hands, the equipment automatically starts welding, and automatically resets after completion;
6. Processing efficiency: Rated comprehensive production capacity: Double-head model 11H approximately 12,000 solder joints, 4-head model 11H approximately 16,000 solder joints;
7. Jig and tooling: Jig is made of anti-static material, custom-made jig and tooling according to the product, quickly call up the product menu, and quickly change the type.
