High-speed extraction ring machine

High-speed extraction ring machine
昆山合劲自动化科技有限公司【官网】

Kunshan Hejin Automation Technology Co., Ltd. specializes in the R&D and manufacturing of automatic equipment including dual-head handle inserters, automatic press-fit handle machines, handle applicators, and full-case missing-bottle weighing machines, focusing on specialized automated production and inspection equipment for the beverage, food, and packaging industries.

Product Introduction

The HK-LK-S series automatic handle installation machine can automatically install handles at the neck position of PET bottles. It is suitable for packaging drinking water, carbonated beverages, fruit juices, edible oils, and alcoholic beverages, etc.
The HK-LK-S series machines are small in size, simple in structure, and stable in performance. They can also be customized with various speeds according to the user's on-site conditions and equipped with corresponding handle nodes. Adding handles is very convenient, and maintenance and upkeep are also relatively easy.

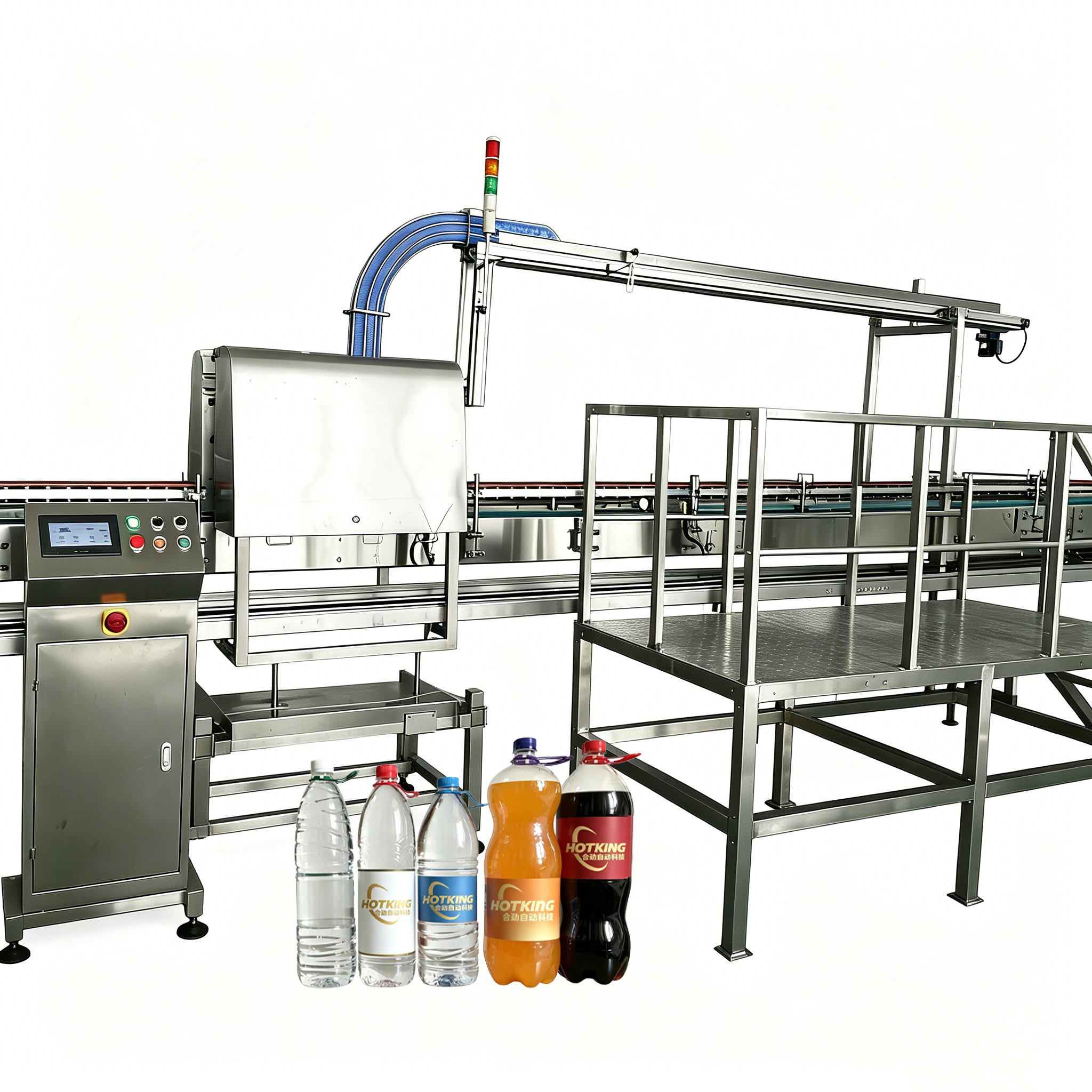

Product real photo

Kunshan Hejin Automation Technology Co., Ltd. [Official Website]
昆山合劲自动化科技有限公司【官网】
昆山合劲自动化科技有限公司【官网】
昆山合劲自动化科技有限公司【官网】

3D image

昆山合劲自动化科技有限公司【官网】

Product parameters

Product model HK-LK-240 HK-LK-480 HK-LK-600 (2 key institutions)
Host size 800*720*1900mm 800*720*1900mm 1500*820*1900mm
Handle conveyor 3000*200*1900mm 3000*200*1900mm 3000*200*1900mm*2
Control cabinet 450*260*1200mm 450*260*1200mm 550*260*1200mm
Sorting speed 240 (pieces/min) 480 (pieces/min) 600 (pieces/min)
Power supply Single-phase AC 220V 50HZ
Power 1100W 1400W 2000W
Use bottle shape Width: 75 - 110mm, Height: 270 - 350mm (customizable)
Handle storage capacity Approximately 1,300 items (customizable) Approximately 1,300 items (customizable) Approximately 2,600 items (customizable)
